Coffee Can Radar Modules built thus far

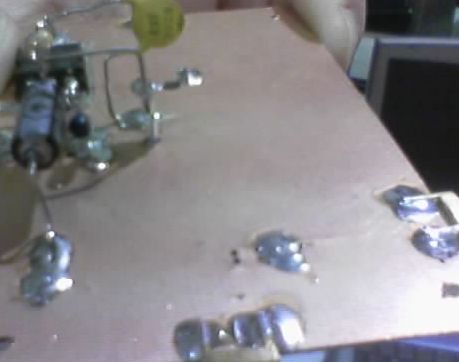

Manhattan-style circuit construction

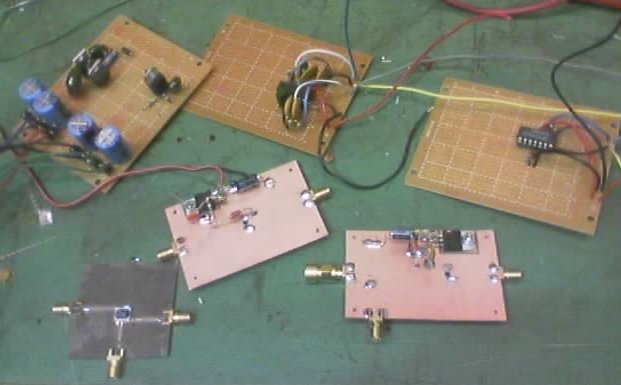

We have the following coffee-can modules built for the first coffee-can radar:
| Position | Function |
|---|---|
| lower left | mixer MCA1-42 |
| lower right | Amplifier/splitter module with ERA-4 MMIC amplifier and SBTC-2-25 splitter onboard |
| lower middle | LNA board with ERA-4 amplifier |
| upper left | power supply board |
| upper middle | 60kHz LPF and video amplifier board |
| upper right | VCO modulator (level translator) board |
